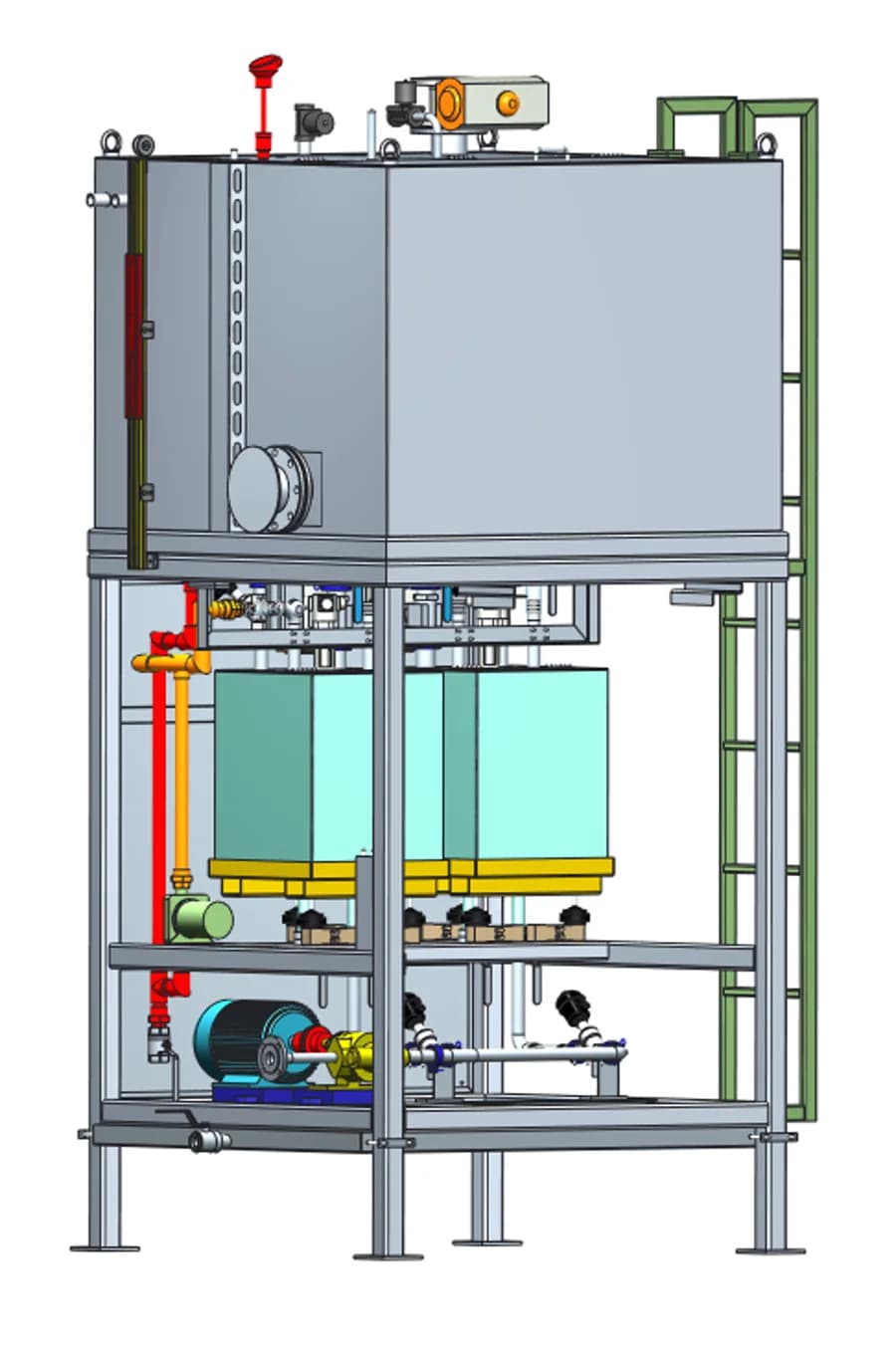

Heated storage
A heated storage system conditions the molasses before continuous metering.
NANLINGINDUSTRIAL CONTROLRequest a quoteNLYT-TC MOLASSES DOSING SYSTEM
Controlled molasses dosing for conditioners
A conditioner-stage system using heated storage, dual weighing tanks, a spray pump and process detection for controlled continuous addition.
BEST FIT
Application fit
- Continuous molasses addition at the conditioner stage
- Lines that need dosing coordinated with material feed
- Projects requiring dual weighing tanks in the documented configuration
- New lines or retrofits with suitable pump and piping access
STANDARD CONFIGURATION
Technical reference
| Model | NLYT-TC-15-A(D) |
|---|---|
| Weighing tanks | 2 × 80 L in the standard configuration |
| Weighing tank size | 450 × 450 × 400 mm |
| Display resolution | 0.1–0.2 kg |
| Addition-rate guidance | 1–3% for general feed; approximately 3–8% for ruminant feed, subject to formula and process |
| Molasses storage | 700 L |
| Structure | Integrated stainless-steel structure |
| Working air pressure | 0.3–0.8 MPa |
| Heating coil power | 15 kW |
| Installed power | Up to 25 kW |
| Standard power supply | AC 380 V, 50 Hz; other project voltages can be reviewed |
SYSTEM CAPABILITIES
How the system handles the process
Final equipment selection and performance criteria are confirmed against the feed line and written into the project specification.
Dual weighing tanks
The standard configuration uses two 80 L weighing tanks to support the dosing process.
Controlled pumping
A spray pump and variable-frequency drive manage conditioner-stage delivery.
Process detection
Level detection, a feeder-speed encoder and pressure signals support coordination with production.
Spray distribution
A stainless-steel distributor, nozzles and control valves apply the liquid at the selected conditioner positions.
Control and alarms
PLC control provides operating modes, monitoring, alarms and parameter settings.
FOR SYSTEM SELECTION
Information to send
- Feed type and hourly output
- Conditioner manufacturer, model and structure
- Target molasses addition rate
- Material feed rate and speed signal
- Available installation space and access
- Piping distance and route
- Voltage, air supply and control interface
- Plant photos, layout or drawings
PROJECT OPTIONS
Configuration can be adapted
- Storage volume and weighing configuration
- Equipment structure and installation arrangement
- Power supply and electrical components
- Pump and variable-frequency drive selection
- Distributor and nozzle arrangement
- Production signal and control interfaces
- Recommended spare-parts package
- Overseas installation and commissioning scope
