Heated storage
The insulated storage and temperature controls condition the molasses before weighing.

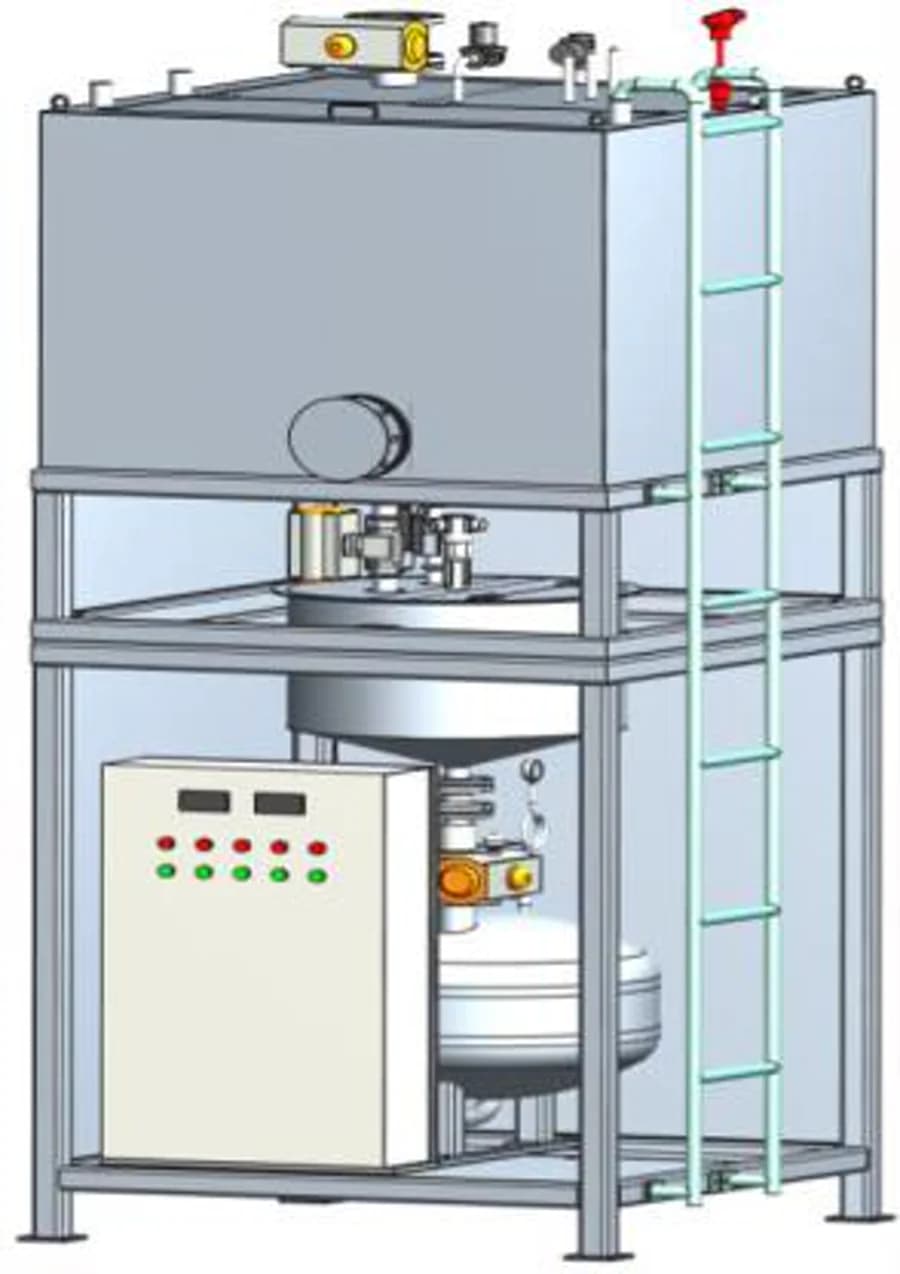

NANLINGINDUSTRIAL CONTROLRequest a quoteNLYT-HQ MOLASSES DOSING SYSTEM
Batch molasses dosing for feed mixers
A compact system combining heated storage, automatic weighing, molasses-to-water ratio control and pneumatic delivery into the mixer. The delivery stage does not use a transfer pump.
BEST FIT
Application fit
- Batch addition directly inside a feed mixer
- Existing-line retrofit where equipment space is constrained
- Plants that want automatic weighing and recipe control
- Projects where compressed air is available for liquid delivery and line clearing
STANDARD CONFIGURATION
Technical reference
| Model | NLYT-HQ-120-A(D) |
|---|---|
| Reference dimensions | 1,220 × 1,220 × 2,950 mm |
| Maximum weighing range | 120 kg; other ranges available by project |
| Weighing vessel diameter | 650 mm |
| Display resolution | 0.1–0.2 kg |
| Addition-rate guidance | 1–3% for general feed; approximately 3–8% for ruminant feed, subject to formula and process |
| Heated storage | 1.3 m³ |
| Structure and spray | Integrated stainless-steel structure; pneumatic delivery |
| Working air pressure | 0.3–0.8 MPa |
| Heating coil power | 15 kW |
| Installed power | Up to 25 kW |
| Standard power supply | AC 380 V, 50 Hz; other project voltages can be reviewed |
SYSTEM CAPABILITIES
How the system handles the process
Final equipment selection and performance criteria are confirmed against the feed line and written into the project specification.
Batch weighing
Load cells meter the required quantity and support automatic molasses-to-water ratio control.
Pneumatic delivery
Compressed air moves the liquid from the buffer vessel to the mixer without a transfer pump in the delivery stage.
Line clearing
Pressure-based control supports delivery completion and helps reduce liquid left in the line.
Spray distribution
A dedicated distributor and stainless-steel spiral nozzle layout distributes liquid across the mixer.
Control and records
Automatic and manual modes, time- or pressure-based spraying, alarm history, production records and USB data export support daily operation.
FOR SYSTEM SELECTION
Information to send
- Feed type and hourly output
- Mixer manufacturer, model and batch size
- Target molasses addition rate
- Available installation space and access
- Distance and route from molasses storage
- Compressed-air pressure and capacity
- Voltage and control interface
- Plant photos, layout or drawings
PROJECT OPTIONS
Configuration can be adapted
- Weighing range and storage volume
- Equipment structure and installation arrangement
- Power supply and electrical components
- Molasses-to-water process settings
- Distributor and nozzle arrangement
- Control interfaces and data requirements
- Recommended spare-parts package
- Overseas installation and commissioning scope
